OLED transparent screens have very high contrast, reaction speed, and color saturation. OLED liquid crystal displays have the advantages of high resolution, thin thickness, light weight, low energy consumption, long lifespan, and no radiation! This transparent OLED does not require backlighting, and its transparency effect is much better than traditional LCD backlit box type transparent screens.
With an ultra-thin OLED module structure, it greatly improves the overall architecture of the original LCD display screen, breaks through the playback form of traditional displays, and expands the application range of traditional displays.
产品详情 & 参数
OLED transparent screens have very high contrast, reaction speed, and color saturation. OLED liquid crystal displays have the advantages of high resolution, thin thickness, light weight, low energy consumption, long lifespan, and no radiation! This transparent OLED does not require backlighting, and its transparency effect is much better than traditional LCD backlit box type transparent screens.
With an ultra-thin OLED module structure, it greatly improves the overall architecture of the original LCD display screen, breaks through the playback form of traditional displays, and expands the application range of traditional displays.
1. Perfect viewing angle, wide viewing angle OLED has a wide viewing angle, and can maintain stunning visual effects from all angles.
2. Excellent black infinite contrast and perfect black self luminous pixels can be independently turned on and off, presenting perfect black. No light leakage, absolute black creates infinite contrast.
3. The perfect industrial design is from light to thin, with only two layers of structure, OLED has an incredibly lightweight body.
4. Ultimate color accuracy&stable color self emitting pixels can accurately restore colors and bring them to life.
5. Smooth dynamic graphics are more responsive. OLED has a dynamic graphics response time 5000 times faster, perfect clarity and no lag.
panel | OLED industrial grade commercial display |
Physical resolution | 1920x1080 (FHD) |
brightness | 150-400 (cd/㎡) self regulating |
contrast ratio | 150000:1 |
response time | 1ms grayscale to grayscale, 8ms dynamic screen response time |
Display Color | 10-bit, 1.07B (1B=1 billion) |
viewing angle | 178°(H) / 178°(V) |
Screen Scale | 16:09 |
Run time | 18 hours/day |
Overall dimensions | 1221.5mm × 699.35mm × 1.78mm (width × high × Thick) |
Display area size | 1209.6 X 680.4mm (W × High) |
Splicing gap | 11.8mm (theoretical value) |
Single screen white edge (mm) | 5.9/5.9/5.9/13 (left/right/up/down) |
Transmittance | 38% |
weight | Screen weight 3.14kg |
Power Supply | Power consumption 190W |
service life | 30000 hours |
environment | Working temperature 5 ℃~45 ℃, working humidity 30%~80%, environmental altitude (altitude) 0-5000m |

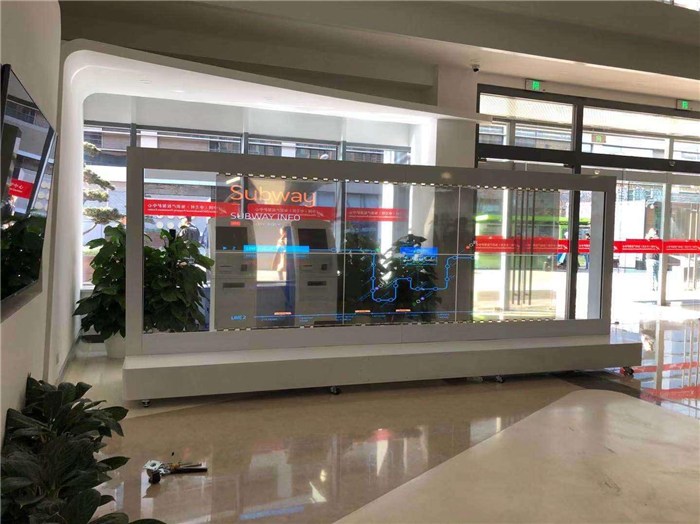

Simply put, it can be used anywhere with glass. Transparent OLED screentransparencyReaching 40%, regardless of whether it is turned on or off, it is almost identical to regular glass when the content is not displayed. such asglass screen wall、Commercial showcaseShowroom display cabinets, windows, and so on can all be used.
